Single synthesis hot cell
- Fully customizable
- Electrical secured front door locks
- Shielded target line from floor level to hot cell
- Fully extractable tray
- Standard particle counter connection

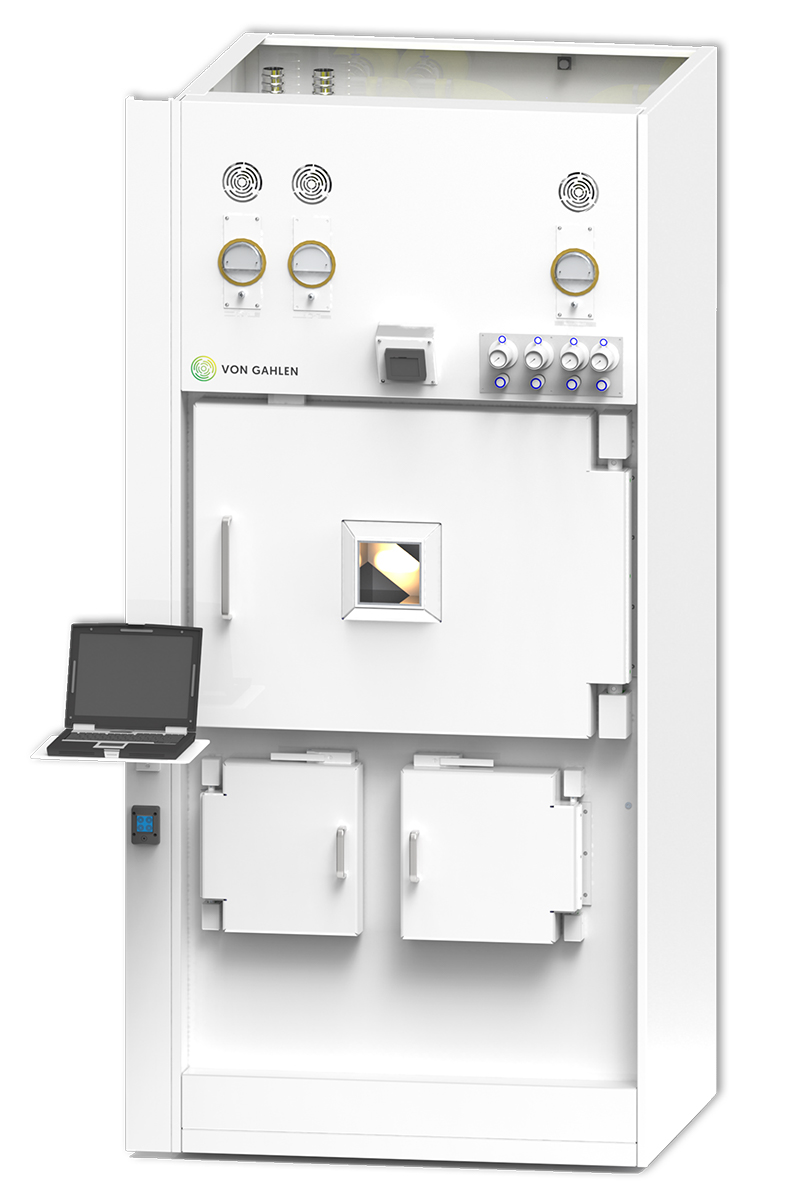

The synthesis box model is designed to house most commercially available synthesis units meeting cGMP guidelines. It provides one shielded compartment with shielding of 75 mm lead in all directions. An internal stainless steel box with large radius corners for easy cleaning and an extractable tray for easy and ergonomically access to the module means a user friendly synthesis box. The air inlet is Hepa filtered, air is taken from the front side.
Front acces is through 2 doors, the primary front hinged shielded door and a secondary acrylic door is equiped with special seals to maintain airtight integrity. The Synthesis box as a standard is equipped with: shielded target line (from floor level to compartment bottom), power connections and basic gas connections.
Several options like lead glass windows, charcoal filters on exhaust, different gas connections and a laptop support are available for the SB2.
